เครื่องบรรจุสุญญากาศ รุ่น VMS 243
หมวดหมู่สินค้า: เครื่องจักรห่อและบรรจุ

01 ธันวาคม 2564

ผู้ชม 1517 ผู้ชม

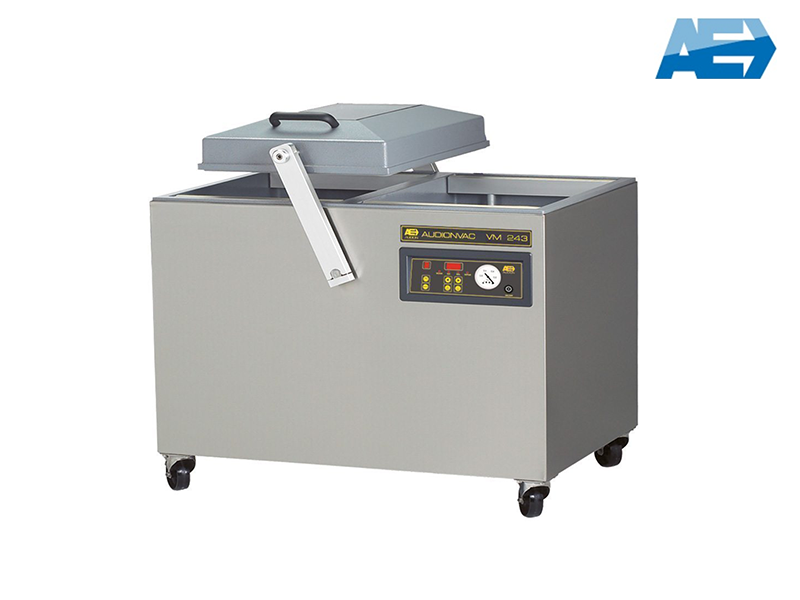

เครื่องบรรจุสุญญากาศ รุ่น VMS 243





Double chamber with aluminium vacuum chambers and lid with sight glass



Industrial double vacuum chamber with aluminum chambers and lid with sight glass. Equipped with a strong Busch pump and two seal bars in each chamber on the front-back side. The special castors used by Audion makes this vacuum machine easy to move and ideal for flexible use. Plug and play but if you have special packing needs, no problem.

You can equip this machine full options for example with aluminum end blocks for heavy duty use.

“Durability, efficiency and high quality: Audionvac VM 243”



Benefits
  • Standard time control
  • Standard soft air to vacuum seal sharp products
  • Busch vacuum pump
  • Standard double seal
  • Maintenance friendly and easy to clean construction
  • High quality materials
  • Standard 2 seal bars front and back
  • Standard with 10 program memory
  • Easy to operate with digital display

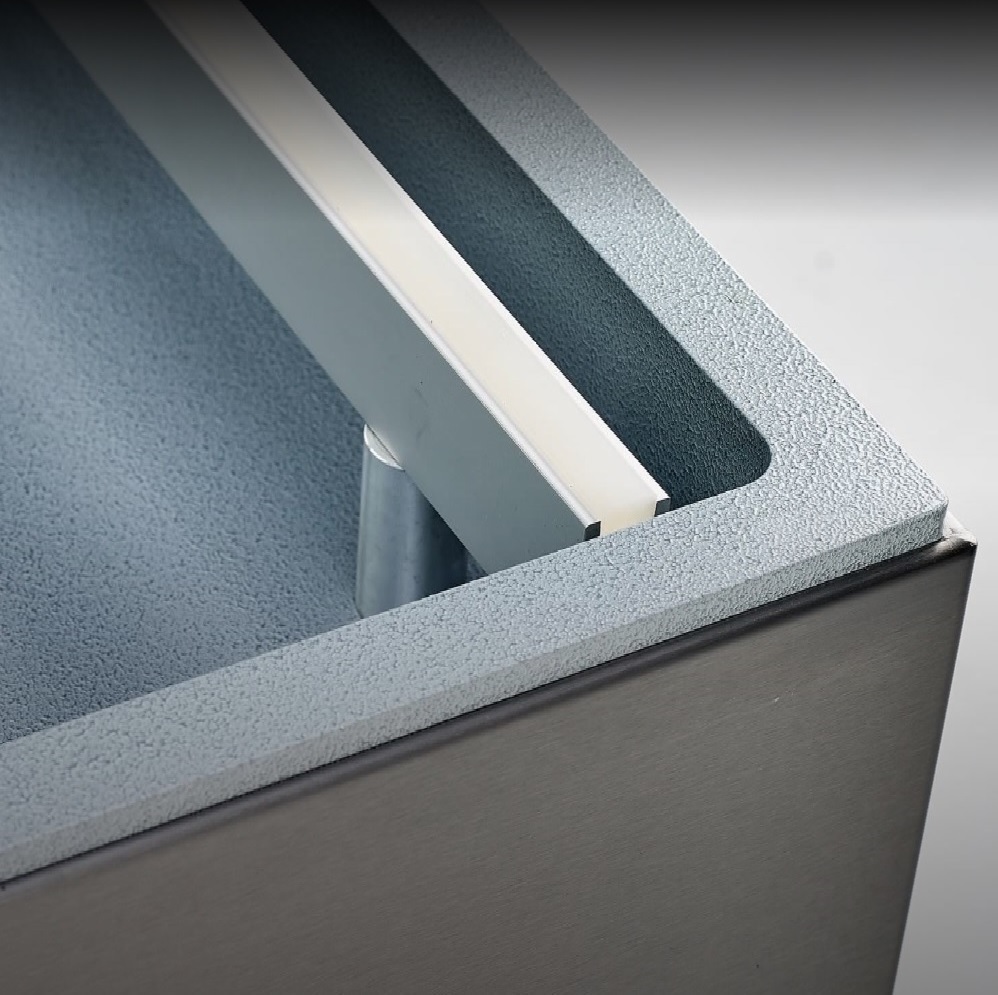

  • Aluminium vacuum chamber
  • Aluminium lid with sight glass
  • Standard equipped with 400-3-50 power supply



Options

  • Gas flush, modifies atmosphere packaging (MAP)

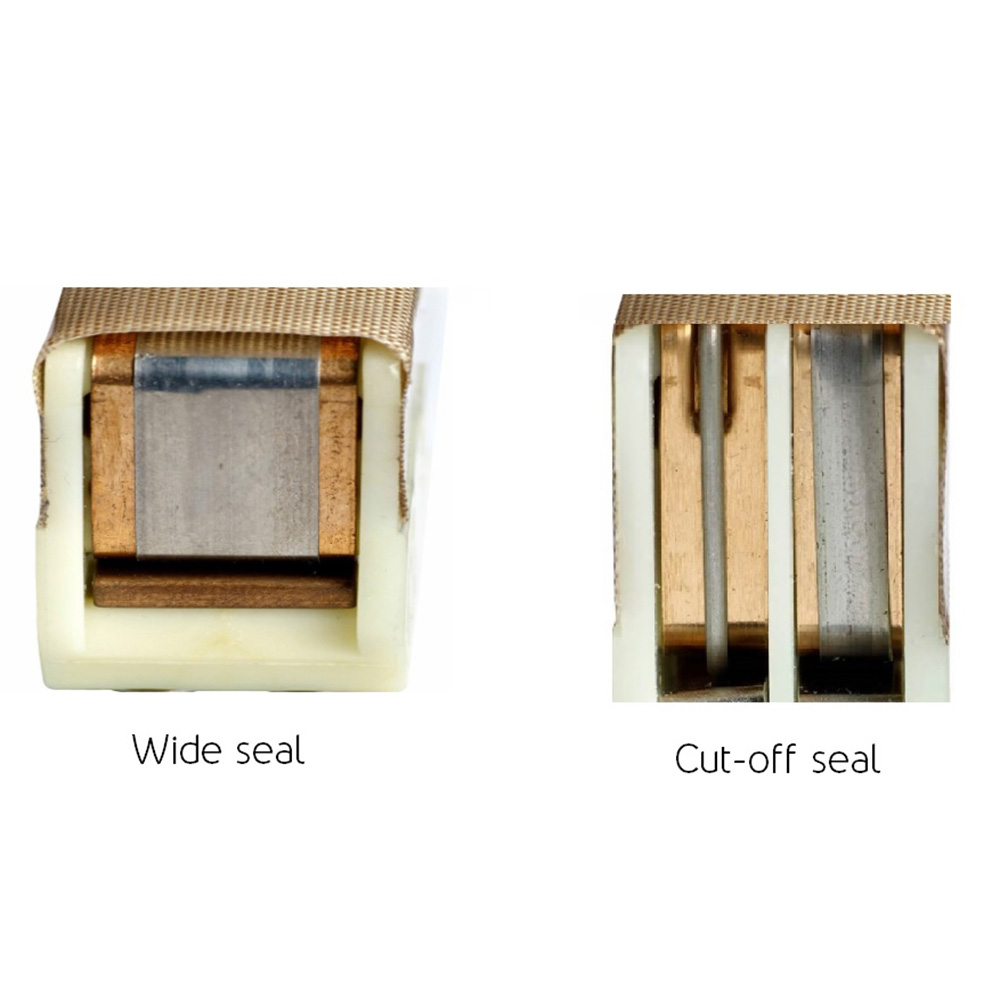

  • Wide seal 10 mm
  • Bi-active seal, is recommend to use when vacuum sealing aluminum or thicker bags.

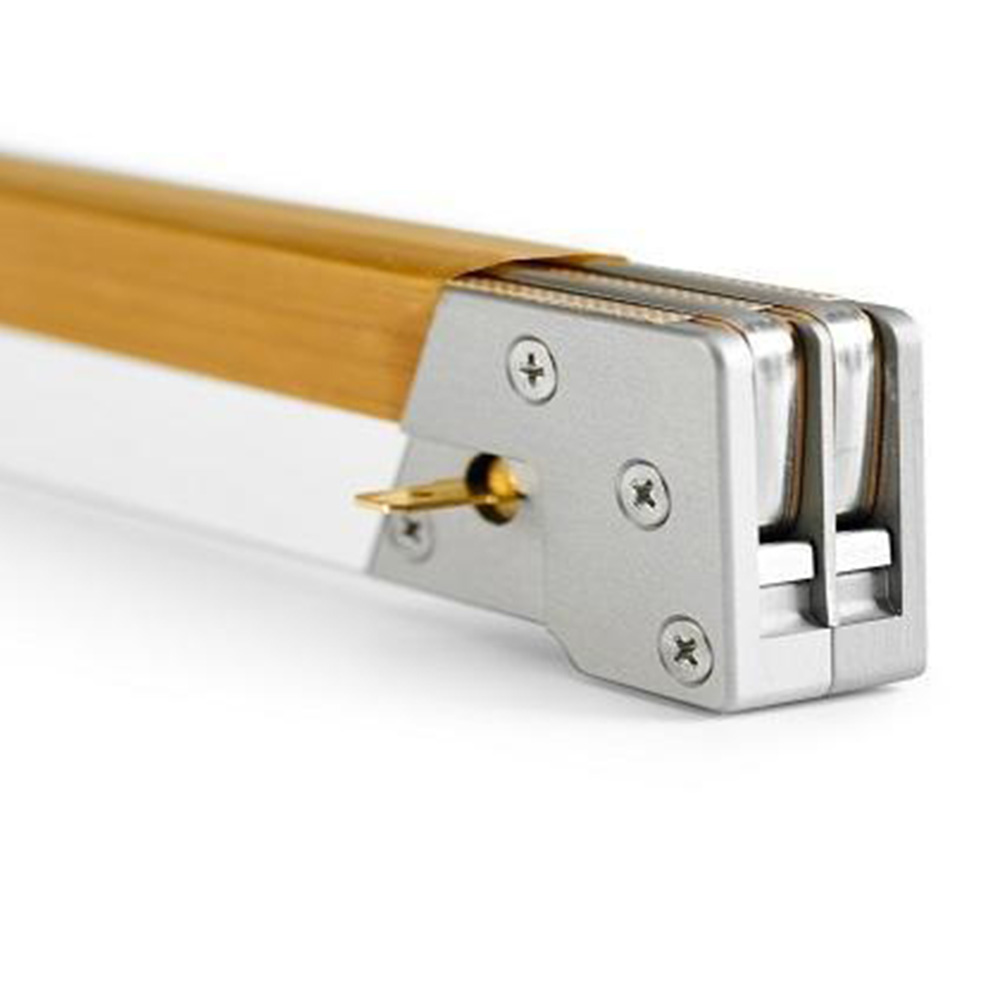

  • Aluminum end blocks, for heavy duty packaging. Ensure an efficient and durable vacuum packaging process under the most extreme conditions.
  • Aluminum end blocks for bi-active, for heavy duty packaging. Ensure an efficient and durable vacuum packaging process under the most extreme conditions.
  • Validatable
  • Calibration
  • Cut-off seal, to easily tear off the residual plastic.
  • 1-2 cut off seal, same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
  • ESD (Electrostatic Discharge ) to pack electrostatic products such as wafers, chips, motherboards and prints . When this occurs during the vacuum packaging cycle, it can cause damage to the product. The Audion ESD technology prevents this.
  • Sensor control, constant, guaranteed end vacuum
  • Power supply: 230-1-50 / 220-1-60 / 200-3-50/60 / 220-3-60
  • Adaptation for external exhaust (on request)





Markets

  • Electronics & components
  • Medical & pharma & High-Tec
  • Meat industry
  • Food processing
  • Direct marketing
  • Non-food industry



SPECIFICATIONS

Product Audionvac VM 243
Seal length 440 mm
Seal width 3,5 mm double seal
Position of the sealing bar
Effective chamber size (LxWxH) (2x) 440 x 580 x 235 mm
Type of machine Vacuum chamber
Model Floor, Double Chamber
Covering Stainless steel machine / Aluminum chamber
Pump capacity 63 m3/h Busch pump
Pedal operated No
Type of film PA/PE, Vacuum Bags
Thickness of film 2 x 150 micron
Type of package Bag
Branche/Application Coffee & Tea, Fruit & Vegetables, Industrial Parts, Office Supplies, Packaging & Logistics, Shop
Type of product Granulate, Powder, Solid
Machine cycle 15 – 40 sec
Power 2,4 – 3,5 kW
Voltage 400V-3-50Hz
Weight 236 kg

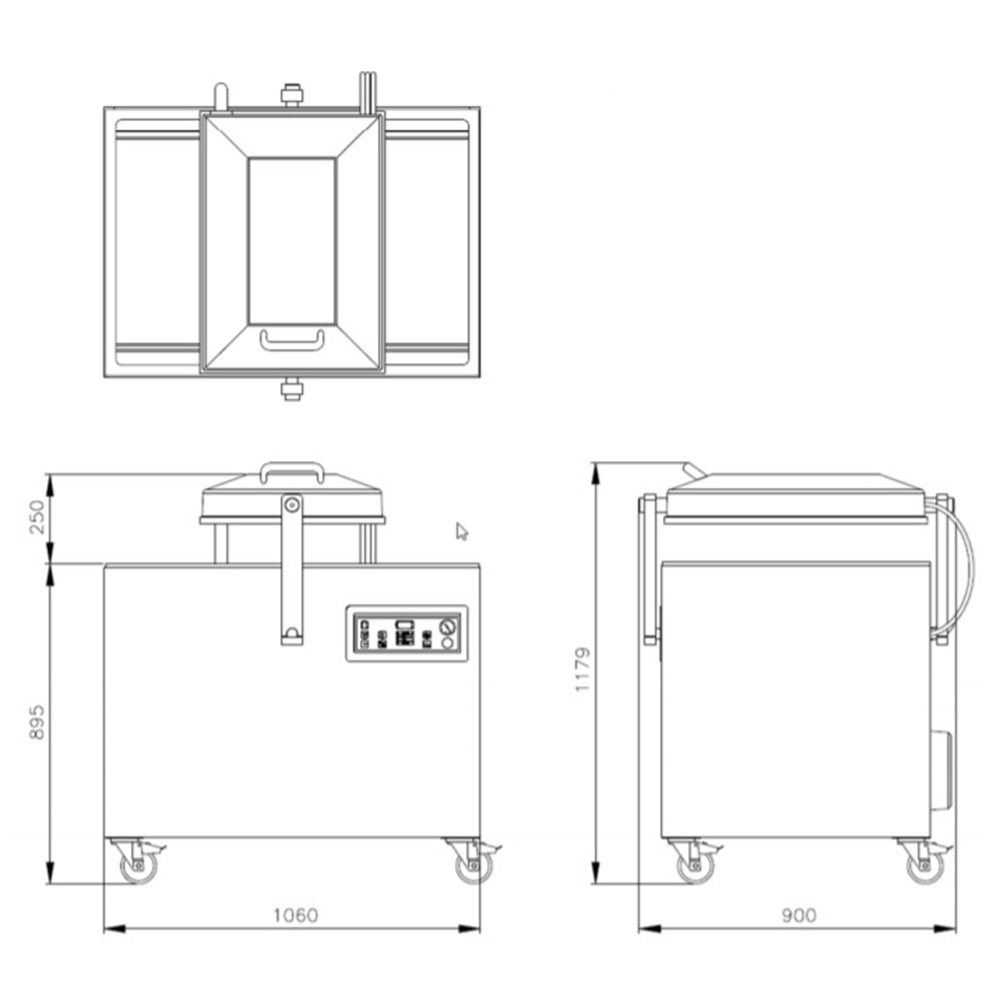

Machine dimensions 900 x 1060 x 1179 mm
Number of gas nozzles (option) 3 per sealing bar
